Woven Wire Mesh
Woven wire mesh is a woven fabric made of metallic material, flexible enough to be woven into a variety of shapes and sizes. At Industrial Mesh Supplies we offer a variety of products, including specialized high quality woven wire cloths of different styles, as well as custom requirements made to your specifications. Woven wire mesh can be supplied in rolls of various widths and lengths.
This is used extensively in various industries and different applications. All materials are woven from wire, and are available ex-Stock from 30mm to 25 Micron, in various types of weave. These meshes can also be punched in various diameters or shapes, and spot-welded together to create screen packs.
![]() |
Specifications Required to order
|
![]() |
Plain WeaveMost commonly used weave. Each weft wire passes alternatively over and under each warm wire and vice versa. Warp and weft wire diameters are generally the same. Plain weave meshes are available with apertures from 10.7mm (2 mesh) to 0.05mm (325 mesh). |
![]() |
Twill WeaveStronger than Plain Weave. Each weft wire alternatively crosses over two, then under two warp wires, producing a diagonal pattern. The wire diameter for both warp and weft is normally the same. Twill weave is usually used to accommodate heavier than standard wire diameter in association with a given mesh. Specifications finer than 300 are normally twill woven. |
![]() |
Hollander WeaveA Palin Weave with the wrap wires of larger diameter than the weft. The weave is made up of a limited number of wrap wires interwoven with the maximum number of weft which can be knocked up. This cloth is strong and firm and is most frequently used for high pressure filtration. |
Plain Weave Meshes
Mesh Count per inch | Wire Dia. (mm) | Aperture Size (mm) | Open Area | Weight for Stainless Steel (kg/sq m) |
5 | 1.000 | 4.080 | 65% | 2.48 |
6 | 0.900 | 3.333 | 62% | 2.41 |
8 | 0.900 | 2.275 | 51% | 3.22 |
8 | 0.710 | 2.465 | 60% | 2.00 |
10 | 0.900 | 1.640 | 42% | 4.02 |
10 | 0.710 | 1.830 | 52% | 2.50 |
10 | 0.500 | 2.040 | 65% | 1.24 |
12 | 0.560 | 1.557 | 54% | 1.87 |
14 | 0.560 | 1.254 | 48% | 2.18 |
16 | 0.560 | 1.028 | 42% | 2.48 |
16 | 0.500 | 1.088 | 47% | 1.99 |
16 | 0.450 | 1.138 | 51% | 1.61 |
16 | 0.315 | 1.273 | 64% | 0.79 |
20 | 0.500 | 0.770 | 37% | 2.48 |
20 | 0.450 | 0.820 | 42% | 2.01 |
20 | 0.355 | 0.915 | 52% | 1.25 |
24 | 0.355 | 0.703 | 44% | 1.50 |
28 | 0.315 | 0.592 | 43% | 1.38 |
30 | 0.315 | 0.532 | 39% | 1.48 |
30 | 0.280 | 0.567 | 45% | 1.17 |
36 | 0.250 | 0.456 | 42% | 1.12 |
40 | 0.224 | 0.411 | 42% | 1.00 |
50 | 0.210 | 0.298 | 34% | 1.10 |
50 | 0.190 | 0.318 | 39% | 0.90 |
60 | 0.200 | 0.22 | 28% | 1.23 |
60 | 0180 | 0.243 | 33% | 0.97 |
70 | 0.150 | 0.231 | 34% | 0.78 |
80 | 0.125 | 0.193 | 37% | 0.62 |
100 | 0.112 | 0.142 | 31% | 0.62 |
120 | 0.090 | 0.122 | 33% | 0.48 |
120 | 0.080 | 0.132 | 39% | 0.38 |
150 | 0.060 | 0.109 | 42% | 0.27 |
165 | 0.050 | 0.104 | 46% | 0.20 |
180 | 0.050 | 0.091 | 42% | 0.22 |
200 | 0.050 | 0.077 | 37% | 0.25 |
200 | 0.040 | 0.087 | 47% | 0.16 |
250 | 0.040 | 0.062 | 37% | 0.20 |
300 | 0.036 | 0.055 | 42% | 0.13 |
325 | 0.036 | 0.042 | 29% | 0.21 |
400 | 0.028 | 0.035 | 28% | 0.18 |
500 | 0.025 | 0.026 | 26% | 0.16 |
Hollander Weave Meshes
Nominal Mesh Count per Inch | Wire Diameter | Particle Retention (micron) | Porosity | Thickness (mm) | Weight for Stainless Steel (kg/sq.m) |
warp 12 weft 70 |
warp 0.600 weft 0.400 |
300 | 62% | 0.225 | 3.64 |
warp 24 weft 110 |
warp 0.355 weft 0.250 |
120 | 60% | 0.710 | 2.70 |
warp 50 weft 250 |
warp 0.140 weft 0.112 |
60 | 59% | 0.315 | 1.00 |

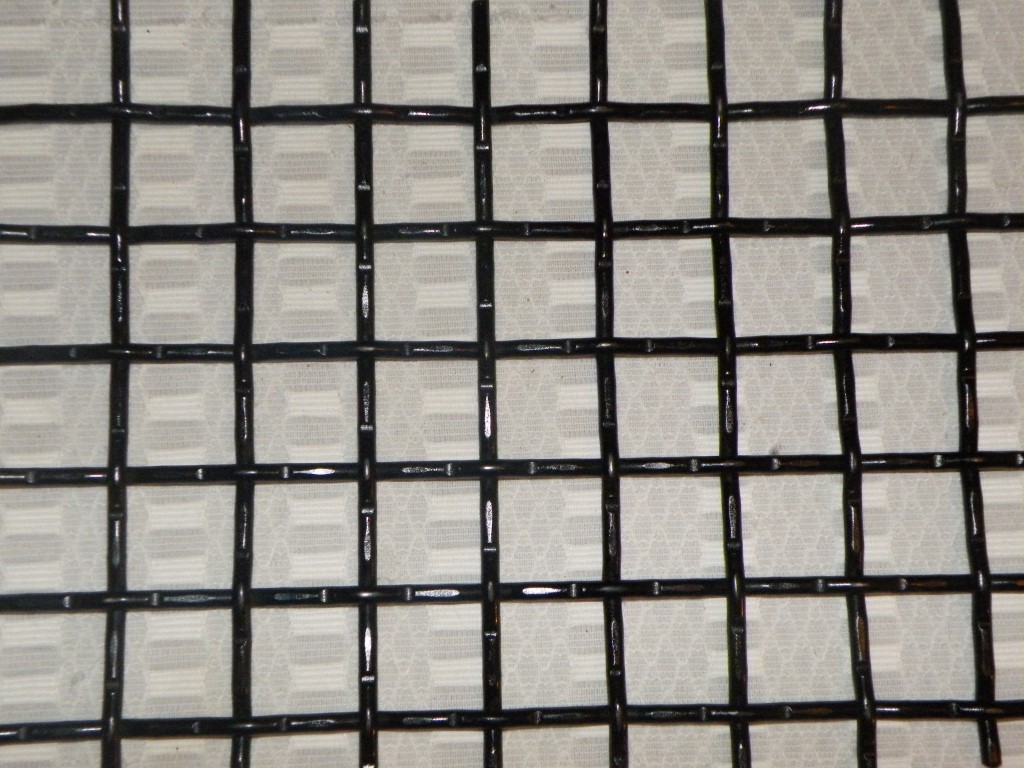

Heavy Wire Mesh
![]() |
Specifications required to order
|
Additional Tensioning Methods
Additional tensioning methods can be manufactured to your specific requirements.

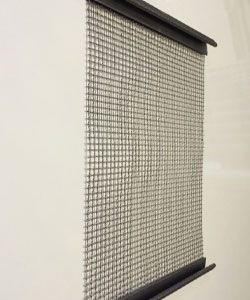

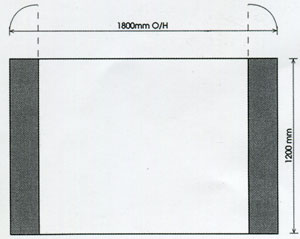

![]() Metal Edged Overhooked Screens |

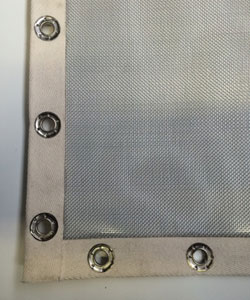

![]() Canvas Edging with Eyelet |
Punched Discs / Screen Packs
These meshes can also be punched to various diameters or shapes, and spotwelded together to make screen packs. Our standard Disc range is from 23mm to 305mm diameter, maximum wire thickness to be punched is 0.7mm.

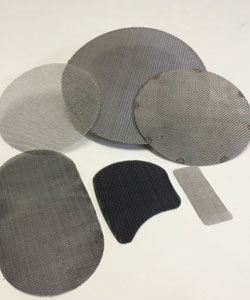

![]() Screen Packs |
Specifications Required to order
|
