Plasma

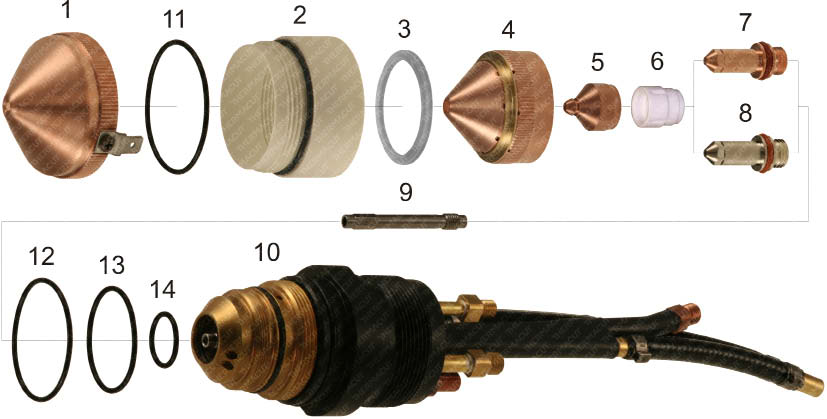

PT-24®

pt-24

Item Part No.. Ref. No. Description Std. Pkg. Item Part No. Ref. No. Description Std. Pkg.
1. T-10130 22531 Cup Shield w/Retainer 1 T-3375 21536 OEM Swirl Baffle 30A 1
T-3369* 22531 OEM Cup Shield w/Retainer 1 7. T-3377 21539 Electrode 5
2. T-9333 21712 Insulator Shield Retainer 1 T-8987 21539-PRO Electrode 5
3. T-3350 22010 Shield Cap Insulator 1 8. T-4916 21539-AG Electrode, Silver 5
4. T-3353 22007 Nozzle Retainer/Diffuser 1 9. PT-10625 21725 Water Baffle 1
5. T-3370 21540 Nozzle “A” 15A 5 10. T-3379 21758 PT-24® Torch Body, Machine 1
T-3371 21541 Nozzle “B” 30A 5 11. T-1257 996528 O-Ring 1
T-3372 21542 Nozzle “C” 50A 5 12. T-2824 950714 O-Ring 1
T-3373 21543 Nozzle “D” 70A 5 13. T-4019 86W62 O-Ring 1
T-3354 21923 Nozzle “E” 100A 5 14. T-4018 638797 O-Ring 1
6. T-3376* 21692 OEM Swirl Baffle 50-100A 1 NS T-3352 22008 Shield Cup 15/30A, Old Design 1
T-10420 21692 Swirl Baffle 50-100A 1 NS T-3351 22009 Shield Cup 50/70A, Old Design 1
T-3374* 21852 OEM Swirl Baffle 15A 1
Replacement parts suitable for
ESAB®/L-TEC®

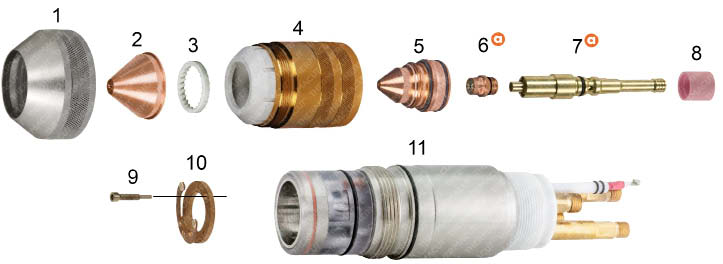

PT-36®

pt-36

Item Part No.. Ref. No. Description Std. Pkg. Item Part No. Ref. No. Description Std. Pkg.
1. T-10128 37081 Shield Retainer 1 T-10443 0558006030 Nozzle 3,0mm, 325/360A MS, 360A SS/AL 1
2. T-10333 0558006130 Shield Cup 3,0mm 1 T-10341 0558006036 Nozzle 3,6mm, 400A MS, 450A SS 1
T-10332 0558006141 Shield Cup 4,1mm 1 T-10292 0558006041 Nozzle 4,1mm, 600A SS/AL 1
T-10334 0558006166 Shield Cup 6,6mm 1 6. T-11290** 0558003914-PRO Electrode Std., O2 100-400A 5
T-10335 0558006199 Shield Cup 9,9mm 1 T-10439* 0558005459 OEM Electrode L.C., O2/N2 5
T-10463 0558007624 Shield Cup 2,4mm 1 T-10696* 0558003928 OEM Electrode Std., N2/H35 5
3. T-2269 21944 Shield Gas Diffuser, Standard 1 T-10601* 0558003914 OEM Electrode Std., O2 5
T-10331 22496 Shield Gas Diffuser, Reverse 1 7. T-11319** 0558003924-UR Electrode Holder 1
NS T-2268 21796 Shield Gas Diffuser, Low Current 1 T-10602* 0558003924 OEM Electrode Holder 1
4. T-10129 37082 Nozzle Retaining Cap, Standard 1 8. T-10693* 0558005457 OEM Baffle, 4 Hole × 0,022 1
5. T-10875 0558008010 Nozzle 1,0mm, PR, 45–55A MS 1 T-4607 0558002534 Gas Baffle, 4 Hole × 0,032, CCW 1
T-10336 0558006010 Nozzle 1,0mm, 45/50A MS/SS/AL 1 T-10694 0558002534 OEM Gas Baffle, 4 Hole × ­0,032, CCW 1
T-10337 0558006014 Nozzle 1,4mm, 100A MS/AL, 70/130A SS 1 T-4606 0558002533 Gas Baffle, 4 Hole × 0,032, CW 1
T-10970 0558006018 Nozzle 1,8mm, 100/130A MS, 100A SS/AL 1 T-4636 0558001625 Gas Baffle, 8 Hole × 0,047, CW 1
T-10338 0558006020 Nozzle 2,0mm, 150/200A MS/AL, 130/150A SS 1 T-10695 0558002530 OEM Baffle, 8 Hole × 0,047, CCW 1
T-10339 0558006023 Nozzle 2,3mm, 200/280A MS, 200A SS, 200/260A AL 1 T-11119 0558002530 Baffle, 8 Hole × 0,047, CCW 1
T-10340 0558006025 Nozzle 2,5mm, 280/290A MS, 260A SS 1

** A UNIQUE DESIGN WHICH ENHANCES PERFORMANCE AND DIFFERS FROM OEM DESIGNS.
Parts marked with “a” MUST BE USED AS A SET OF ELECTRODE HOLDER AND ELECTRODE, THIS COMPLETE SET IS INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS



Replacement parts suitable for
HYPERTHERM®

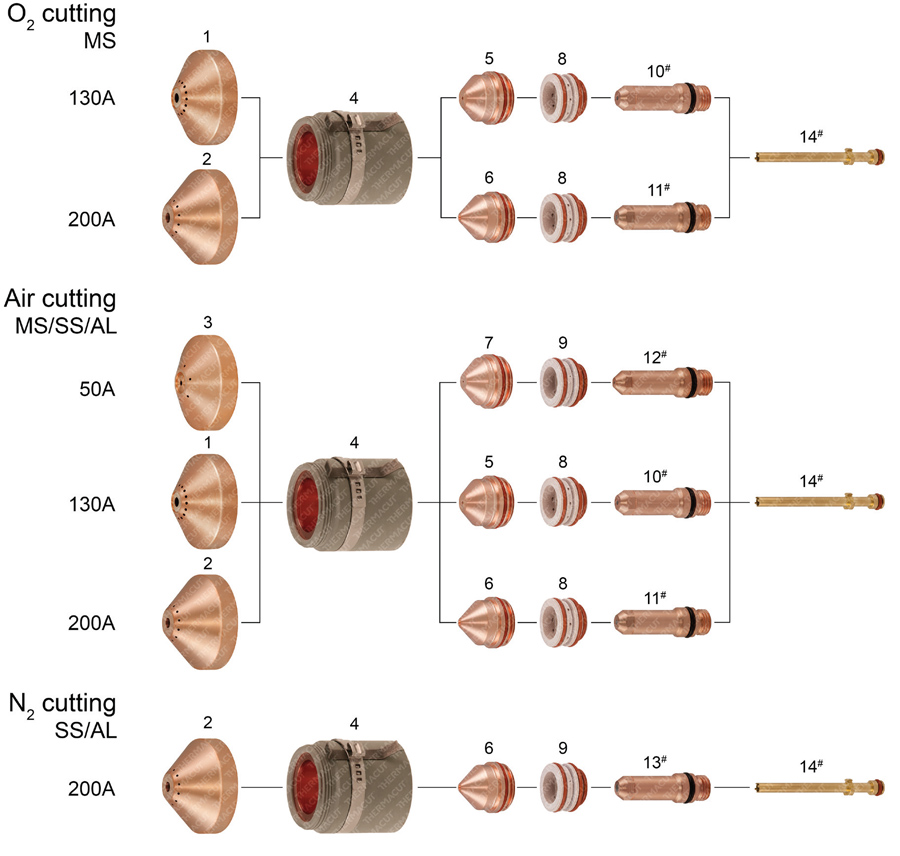

HyPro2000 upgrade torch MAX200

HyPro2000 upgrade torch MAX200



Item Part No.. Ref. No. Description Std. Pkg. Item Part No. Ref. No. Description Std. Pkg.
1. T-11284 220536 Shield 130A O2/Air 1 8 T-11280 220488 Swirl Ring 130A O2/ Air, 200A O2 1
2. T-11376 420045 Shield 200A O2/Air/N2 1 9 T-11282 220529 Swirl Ring 50A Air, 200A N2 1
3. T-11283 220532 Shield 50A Air 1 10 T-11304# 220487-UR Electrode 130A O2/Air 5
4. T-11349* 220936-UR Retaining Cap 50–200A O2/Air, 200A N2 1 11 T-11317# 220937-UR Electrode 200A O2/Air 5
NS T-11348* 220935-UR Retaining Cap 50–200A O2/Air, 200A N2 w/o IHS 1 12 T-11309# 220528-UR Electrode 50A Air 5
5. T-11315* 220892-UR Nozzle 130A O2/Air 1 13 T-0382# 020415-UR Electrode 200A N2 5
6. T-11837* 420044-UR Nozzle 200A O2/Air/N2 1 14 T-11307# 220521-UR Cooling Tube (use with TMT electrode 1
7. T-11313* 220890-UR Nozzle 50A Air 1

* FULLY INTERCHANGEABLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
# THERMACUT ELECTRODES HAS TO BE USED WITH THERMACUT DESIGN COOLING TUBE, OTHERWISE IT DOESN’T FIT TO THE
TORCH, THERMACUT COOLING TUBE CAN BE USED FOR THERMACUT DESIGN ELECTRODES AND FOR ORIGINAL DESIGN TOO.

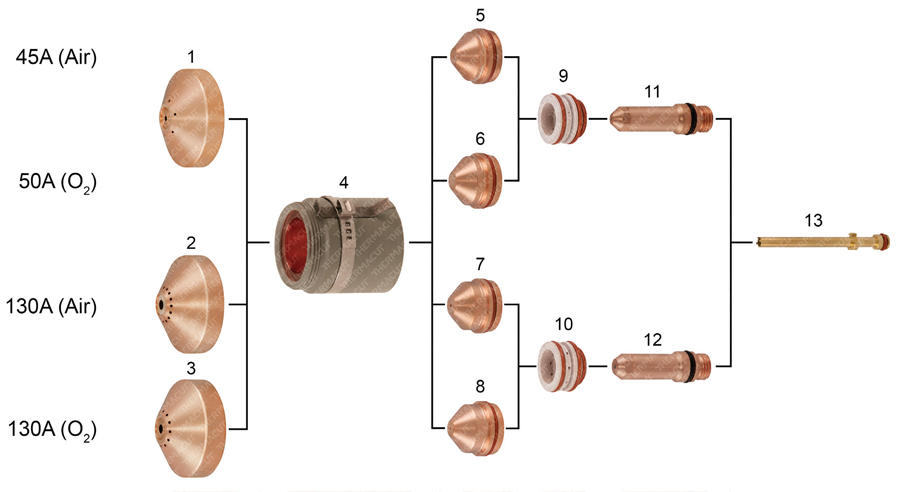

HYPERTHERM® HSD®130

HSD130

Item Part No.. Ref. No. Description Std. Pkg. Item Part No. Ref. No. Description Std. Pkg.
1. T-11283 220532 Shield 45A Air, 50A O2 1 7 T-11306 220492 Nozzle 130A Air 1
2. T-11284 220536 Shield 130A Air 1 8 T-11305 220489 Nozzle 130A O2 1
3. T-11281 220491 Shield 130A O2 1 9 T-11282 220529 Swirl Ring 45A Air, 50A O2 5
4. T-11285 220578-UR Ret. Cap 45/130A Air, 50/130A O2 w/IHS 1 10 T-11280 220488 Swirl Ring 130A Air/O2 5
NS T-11347 220490-UR Ret. Cap 45/130A Air, 50/130A O2 w/o IHS 1 11 T-11309 220528-UR Electrode 45A Air, 50A O2 5
5. T-11308 220525 Nozzle 45A Air 1 12 T-11304 220487-UR Electrode 130A Air/O2 5
6. T-11311 220530 Nozzle 50A O2 1 13 T-11307 220521-UR Cooling Tube 1

* FULLY INTERCHANGEABLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
# THERMACUT ELECTRODES HAS TO BE USED WITH THERMACUT DESIGN COOLING TUBE, OTHERWISE IT DOESN’T FIT TO THE TORCH,
THERMACUT COOLING TUBE CAN BE USED FOR THERMACUT DESIGN ELECTRODES AND FOR ORIGINAL DESIGN TOO.;

Replacement parts suitable for
HySpeed®

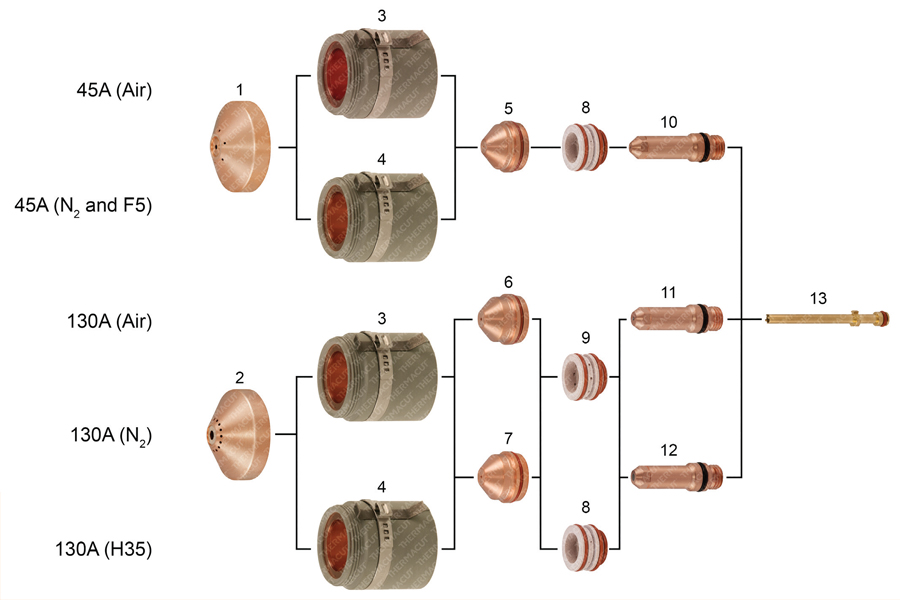

HySpeed® Plasma, HSD®130 STAINLESS steel, ALUMINIUM

HySpeed Plasma, HSD 130 STAINLESS steel, ALUMINIUM



Item Part No.. Ref. No. Description Std. Pkg. Item Part No. Ref. No. Description Std. Pkg.
1. T-11283 220532 Shield 45A Air/N2/F5 1 7 T-11310 220535 Nozzle 130A H35/N2 1
2. T-11284 220536 Shield 130A Air/H35/N2 1 8 T-11282 220529 Swirl Ring 45A Air/N2/F5, 130A H35 5
3. T-11285 220578-UR Ret. Cap 45A Air, 130A Air/N2 w/IHS 1 9 T-11280 220488 Swirl Ring 130A Air/N2 5
NS T-11347 220490-UR Ret. Cap 45A Air, 130A Air/N2 w/o IHS 1 10 T-11309 220528-UR Electrode 45A Air/N2/F5 5
4. T-11350 220534-UR Ret. Cap 45A N2/F5, 130A H35 w/IHS 1 11 T-11304 220487-UR Electrode 130A Air 5
NS T-11346 220533-UR Ret. Cap 45A N2/F5, 130A H35 w/o IHS 1 12 T-0382 020415-UR Electrode 130A H35/N2 5
5. T-11308 220525 Nozzle 45A Air/N2/F5 1 13 T-11307 220521-UR Cooling Tube 1
6. T-11306 220492 Nozzle 130A Air 1



Item Part No.. Ref. No. Description Std. Pkg. Item Part No. Ref. No. Description Std. Pkg.
1. T-11283 220532 Shield 45A Air 1 7 T-11310 220535 Nozzle 130A H35 1
2. T-11284 220536 Shield 130A Air/H35 1 8 T-11282 220529 Swirl Ring 45A Air, 130A H35 5
3. T-11285 220578-UR Retaining Cap 45/130A Air w/IHS 1 9 T-11280 220488 Swirl Ring 130A Air 5
NS T-11347 220490-UR Retaining Cap 45/130A Air w/o IHS 1 10 T-11309 220528-UR Electrode 45A Air 5
4. T-11350 220534-UR Retaining Cap 130A H35 w/IHS 1 11 T-11304 220487-UR Electrode 130A Air 5
NS T-11346 220533-UR Retaining Cap 130A H35 w/o IHS 1 12 T-0382 020415-UR Electrode 130A H35 5
5. T-11308 220525 Nozzle 45A Air 1 13 T-11307 220521-UR Cooling Tube 1
6. T-11306 220492 Nozzle 130A Air 1

* FULLY INTERCHANGEABLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
# THERMACUT ELECTRODES HAS TO BE USED WITH THERMACUT DESIGN COOLING TUBE, OTHERWISE IT DOESN’T FIT TO THE TORCH,
THERMACUT COOLING TUBE CAN BE USED FOR THERMACUT DESIGN ELECTRODES AND FOR ORIGINAL DESIGN TOO.;

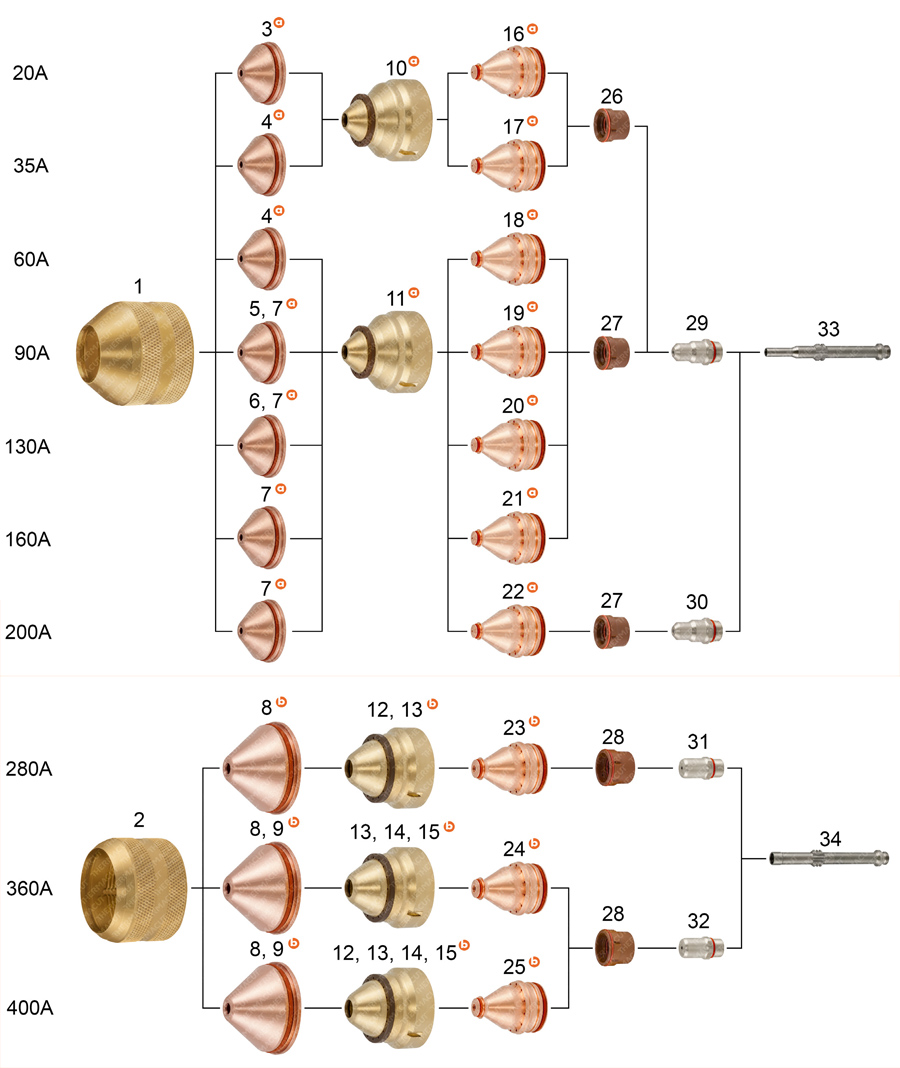

KJELLBERG® PERCUT®210 PERCUT®450M

KJELLBERG PERCUT 210 PERCUT 450M

REPLACEMENT PARTS SUITABLE FOR
KJELLBERG® PERCUT®210/PERCUT®450M



Item Part No.. Ref. No. Description Item Part No. Ref. No. Description
1. T-11221 11.848.201.081 Protection cap 20-200A G501 8 T-11354 11.848.221.408-UR Nozzle 60A G2008Y
2. T-11227 11.848.401.081 Protection cap 280-400A G521 19 T-11355 11.848.221.410-UR Nozzle 90A G2010Y
3. T-11368 11.848.201.1515-UR Swirl Gas Cap 20A G4015 20 T-11356 11.848.221.412-UR Nozzle 130A G2012Y
4. T-11369 11.848.201.1520-UR Swirl Gas Cap 35/60A G4020 21 T-11357 11.848.221.414-UR Nozzle 160A G2014Y
5. T-11371 11.848.201.1525-UR Swirl Gas Cap 90A G4025 22 T-11358 11.848.221.416-UR Nozzle 200A G2016Y
6. T-11370 11.848.201.1522-UR Swirl Gas Cap 130A G4022 23 T-11359 11.848.421.426-UR Nozzle 280A G2326Y
7. T-11372 11.848.201.1530-UR Swirl Gas Cap 90-200A G4030 24 T-11360 11.848.421.430-UR Nozzle 360A G2330Y
8.. T-11373 11.848.401.1550-UR Swirl Gas Cap 280-400A G4350 25 T-11361 11.848.421.431-UR Nozzle 400A G2331Y
9. T-11374 11.848.401.1555-UR Swirl Gas Cap 360-400A G4355 26 T-1123 11.848.221.145 Gas Guide 20/35A G101
10. T-11362 11.848.201.1604-UR Retaining Cap 20-35A G3004 27 T-1124 11.848.221.146 Gas Guide 60-200A G102
11. T-11363 11.848.201.1628-UR Retaining Cap 60-200A G3028 28 T-11230 11.848.421.145 Gas Guide 280-400A G121
12. T-11367 11.848.401.1649-UR Retaining Cap 280/400A G3249 29 T-11225 11.848.221.300-AG Cathode, SilverEX-® 20-160A G002Y
13. T-11365 11.848.401.1619-UR Retaining Cap 280-400A G3219 30 T-11226 11.848.221.310-AG Cathode, SilverEX-® 200A G003Y
14. T-11366 11.848.401.1629-UR Retaining Cap 360/400A G3229 31 T-11232 11.848.421.310-AG Cathode, SilverEX-® 280A G032Y
15. T-11364 11.848.401.1609-UR Retaining Cap 360/400A G3209 32 T-11233 11.848.421.330-AG Cathode, SilverEX-® 360A/400A G034Y
16. T-11352 11.848.221.406-UR Nozzle 20A G2006Y 33 T-11222 11.848.201.142 Cooling Tube 20-200A G901Y
17. T-11353 11.848.221.407-UR Nozzle 35A G2007Y 34 T-11228 11.848.401.142 Cooling Tube 280-400A G931Y

* FULLY INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
, MUST BE USED ONLY AS A SET OF SWIRL GAS CAP, RETAINING CAP AND NOZZLE, THIS COMPLETE SET IS INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS
THERMACUT DESIGN IS PROTECTED BY UTILITY PATENT

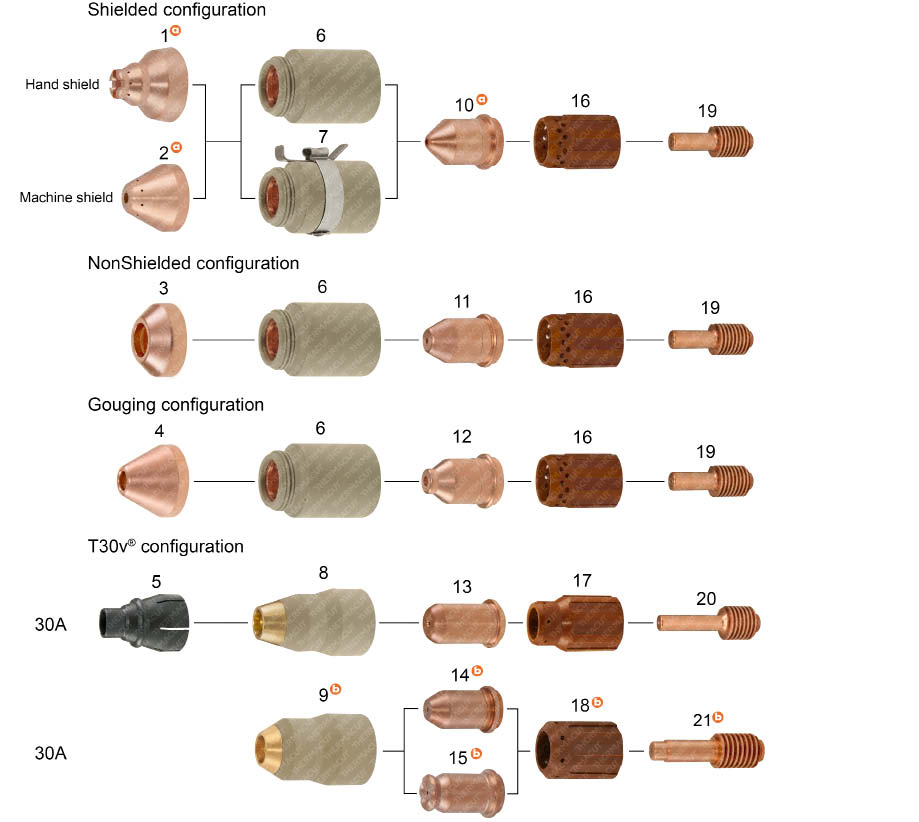

POWERMAX 45®
T30v®/T45v® hand torch, T45m® machine torch

POWERMAX 45
T30v T45v hand torch T45m machine torch

Item Part No.. Ref. No. Description Std. Pkg. Item Part No. Ref. No. Description Std. Pkg.
1. T-11393 220674-UR Shield – hand cutting 1 9. T-11395 220671-UR Nozzle-Shielded 5
2. T-11398 220673-UR Shield – machine cutting 1 10. T-11214 220718 Nozzle-NonShielded 5
3. T-11213 220717 Deflector 1 11. T-11394 220672 Nozzle-Gouging 5
4. T-11392 220675 Shield-Gouging 1 12. T-11234 220480 Nozzle 30A 5
5. T-10777 220569 OEM Deflector (optional) 1 13. T-11212 220670 Swirl Ring 45A 1
6. T-11237* 220713-UR Retaining Cap 45A (without IHS tab) 1 14. T-11235 220479 Swirl Ring 30A 1
7. T-11391* 220719-UR Retaining Cap 45A (with IHS tab) 1 15. T-11236 220669 Electrode 45A 5
8. T-11279* 220483-UR Retaining Cap 30A 1 16. T-10758 220478 OEM Electrode 30A 5
– Parts marked with “a” – MUST BE USED ONLY AS A SET OF SHIELD AND NOZZLE, THIS COMPLETE SET IS INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS
* FULLY INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
Replacement parts suitable for
HYPERTHERM®

HyPerformance™ Plasma

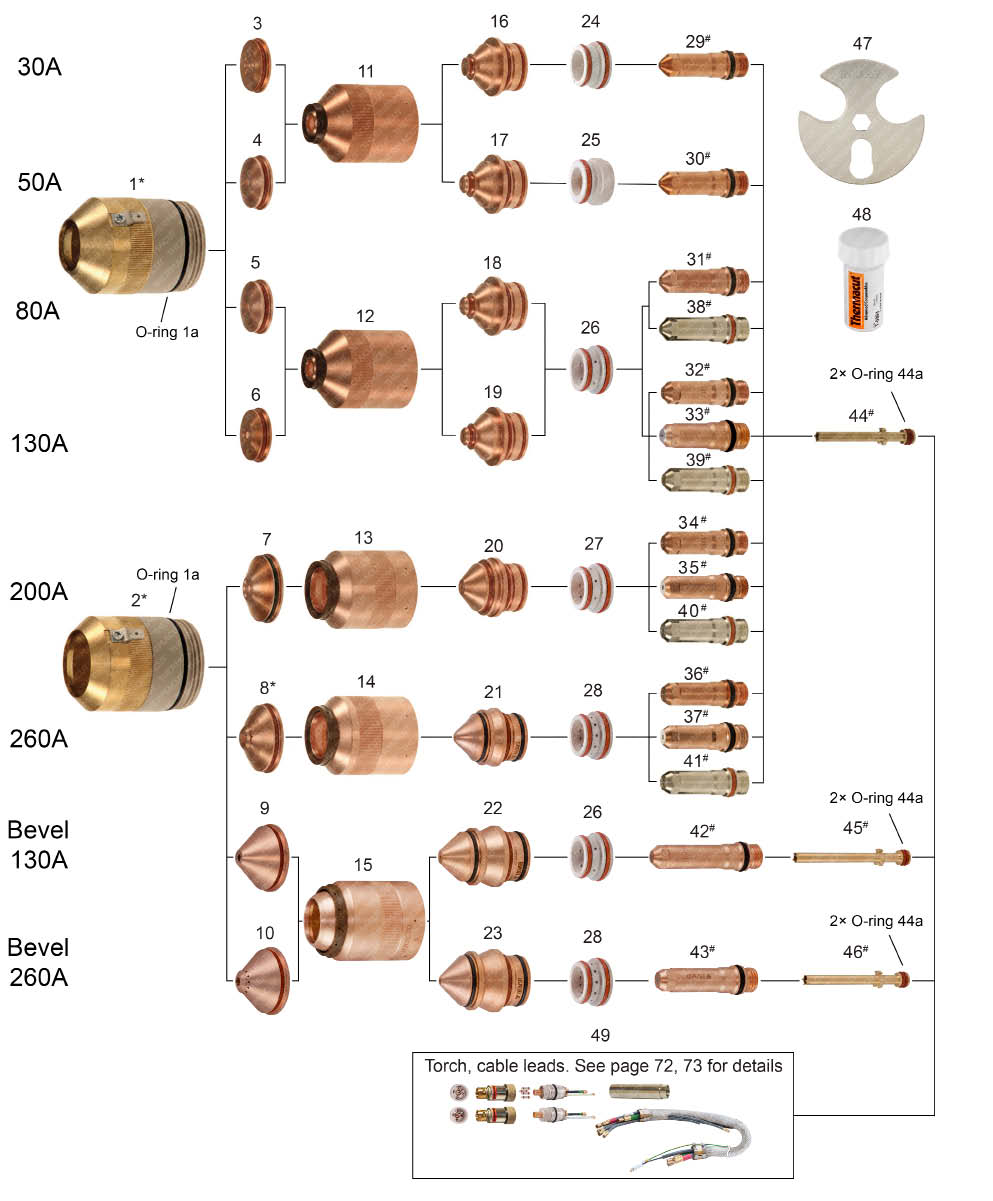

HPR130®/HPR260® mild steel

HyPerformance Plasma
HPR130 HPR260 mild steel

Item Part No.. Ref. No. Description Std. Pkg. Item Part No.. Ref. No. Description Std. Pkg.
*1. T-9961* 220173-UR Shield Cap 30–130A 1 T-10941 220646 Nozzle, 130A Bevel 1
1a. 1-031B 1-031B O-Ring 1 23. T-10308## 220542-UR Nozzle, 260A Bevel 1
*2. T-9964* 220398-UR Shield Cap 200/260A (130/260A, Bevel) 1 T-10939 220542 Nozzle, 260A Bevel 1
3. T-10878 220194 Shield 30A 1 24. T-10297 220180 Swirl Ring 30A 1
4. T-10882 220555 Shield 50A 1 25. T-10305 220553 Swirl Ring 50A 1
5. T-9838 220189 Shield 80A 1 26. T-10295 220179 Swirl Ring 80/130 (130A Bevel) 1
6. T-9839 220183 Shield 130A 1 27. T-10296 220353 Swirl Ring 200A 1
7. T-9965 220356 Shield 200A 1 28. T-10271 220436 Swirl Ring 260A (260A Bevel) 1
**8. T-9970** 220440-UR Shield 260A 1 #29. T-9894# 220192-UR Electrode 30A 5
9. T-10311 220645 Shield, 130A Bevel 1 #30. T-10306# 220552-UR Electrode 50A 5
10. T-10881 220545 Shield, 260A Bevel 1 #31. T-9895# 220187-UR Electrode 80A 5
11. T-11146 220313 Inner Retaining Cap 30/50A 1 #32. T-9920# 220181-UR Electrode 130A 5
12. T-11144 220176 Inner Retaining Cap 80/130A 1 #33. T-11203# 220181-PRO Electrode 130A(=220665-PRO) 5
13. T-11149 220355 Inner Retaining Cap 200A 1 #34. T-9969# 220352-UR Electrode 200A 5
14. T-11150 220433 Inner Retaining Cap 260A 1 #35. T-11200# 220352-PRO Electrode 200A(=220666-PRO) 5
15. T-11151 220603 Inner Retaining Cap 130A/260A, Bevel 1 #36. T-9974# 220435-UR Electrode 260A 5
16. T-9834## 220193-UR Nozzle 30A 1 #37. T-11197# 220435-PRO Electrode 260A(=220668-PRO) 5
T-10936 220193 Nozzle 30A 1 #38. T-4927# 220187-AG Electrode, SilverEX-® 80A 5
17. T-10313## 220554-UR Nozzle 50A 1 #39. T-4917# 220181-AG Electrode, SilverEX-® 130A 5
T-10940 220554 Nozzle 50A 1 #40. T-4925# 220352-AG Electrode, SilverEX-® 200A 5
18. T-9835## 220188-UR Nozzle 80A 1 #41. T-4926# 220435-AG Electrode, SilverEX-® 260A 5
T-10935 220188 Nozzle 80A 1 #42. T-10309# 220649-UR Electrode, 130A Bevel 5
19. T-9836## 220182-UR Nozzle 130A 1 #43. T-10307# 220541-UR Electrode, 260A Bevel 5
T-10934 220182 Nozzle 130A 1 #44. T-9882# 220340-UR Water Tube With O-Ring 1
NS T-10248 220510-UR Nozzle 100A, HD3070 upgrade 1 44a. N-10055 1-009S O-Ring 1
NS T-11265 220510 Nozzle 100A, HD3070 upgrade 1 #45. T-10472# 220700-UR Water Tube With O-Ring, 130A Bevel 1
20. T-9967 220354-UR Nozzle 200A 1 #46. T-10323# 220571-UR Water Tube With O-Ring, 260A Bevel 1
T-10937 220354 Nozzle 200A 1 *47. TN-0069* 104119-UR Consumables Removal Tool 1
21. T-9972 220439-UR Nozzle 260A 1 48. T-0994 T-0994 O-ring lubricant – grease 25ml 1

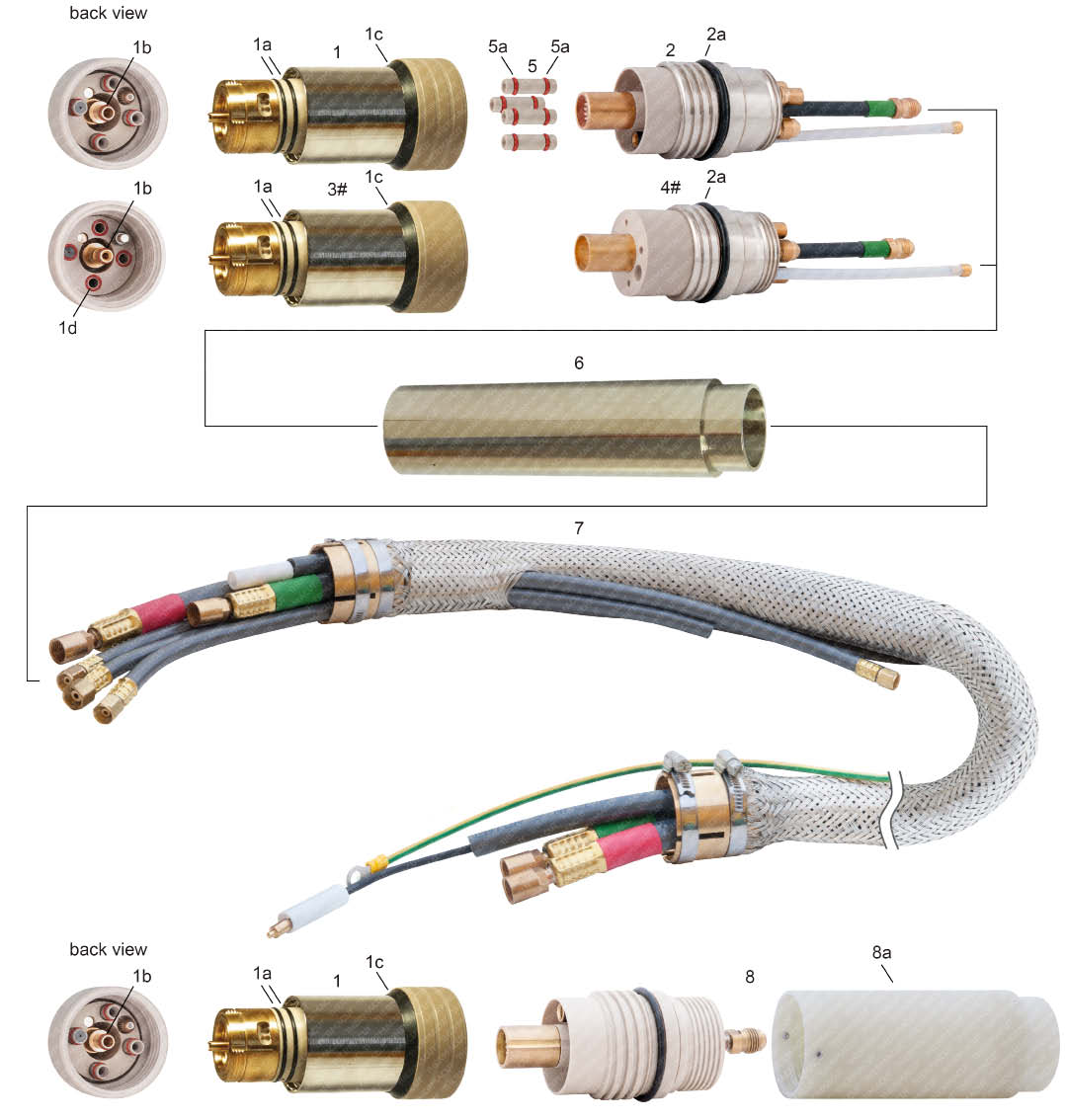

T-10938 220439 Nozzle 260A 1 49. Torch, cable leads. See page 72, 73 for details
22. T-10310## 220646-UR Nozzle, 130A Bevel 1
* FULLY INTERCHANGEABLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
# THERMACUT ELECTRODES HAS TO BE USED WITH THERMACUT DESIGN COOLING TUBE, OTHERWISE IT DOESN’T FIT TO THE TORCH, THERMACUT COOLING TUBE CAN BE USED FOR THERMACUT DESIGN ELECTRODES AND FOR ORIGINAL DESIGN TOO
** SHIELD OFFERS BETTER LIFETIME BECAUSE OF IMPROVED DESIGN AND IS FULLY INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS
## NOZZLES -UR IN SOME CASES CAN REQUIRE DECREASE OF GAS FLOW, OFFERS SAVINGS OF THE COSTS FOR OXYGEN
NS Not shown in the picture
Replacement parts suitable for
HYPERTHERM®

HyPerformance™ Plasma

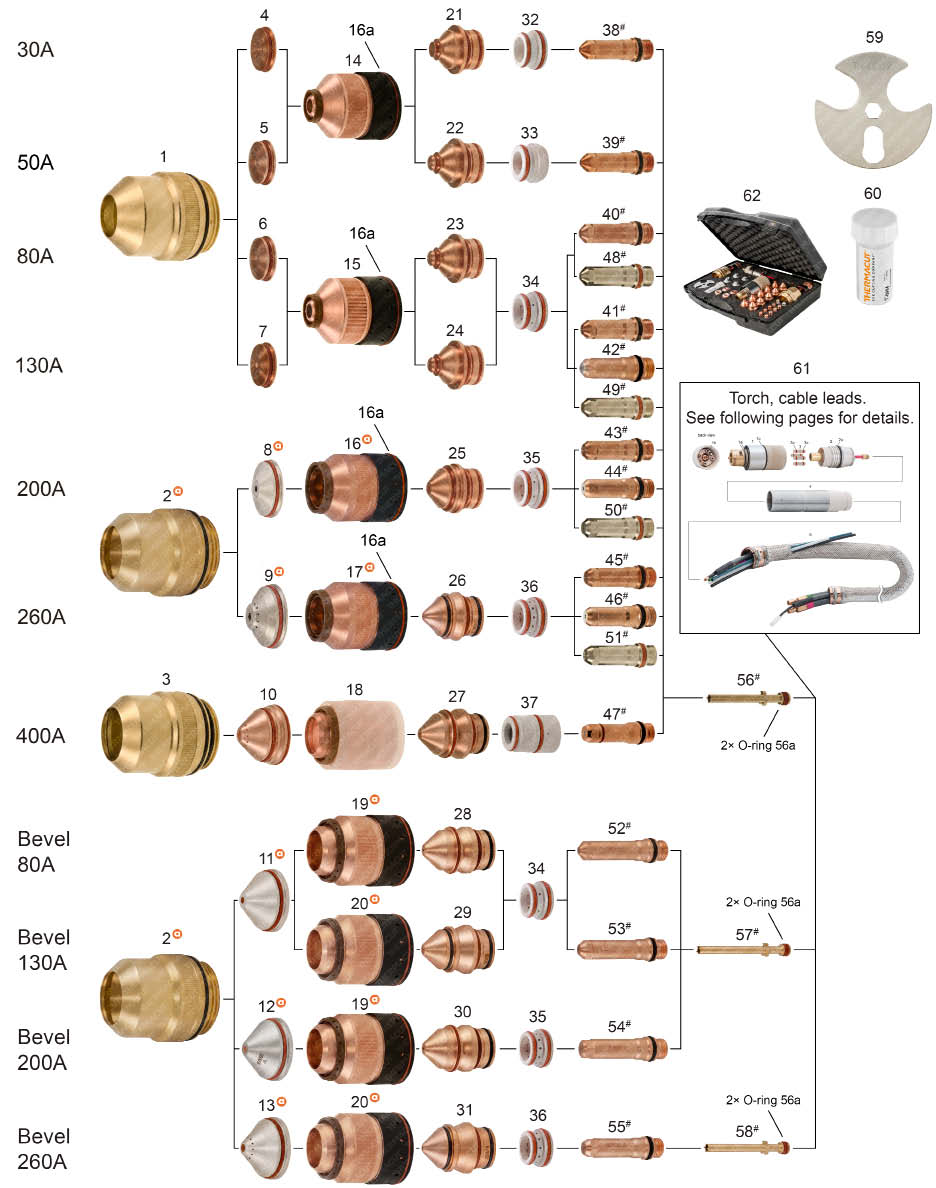

HPR130XD®/HPR260XD®/HPR400XD® mild steel

HyPerformance Plasma
HPR130XD HPR260XD HPR400XD mild steel



Item Part No.. Ref. No. Description Std. Pkg. Item Part No.. Ref. No. Description Std. Pkg.
1. T-11271 220747 Shield Cap 30–130A 1 27. T-10308## 220542-UR Nozzle 260A, Bevel 1
2. T-11270 220637-UR Shield Cap 200/260A 1 T-10939 220542 Nozzle 260A, Bevel 1
3. T-11113 220637 OEM Shield Cap 400A (400A Bevel) 1 28. T-10297 220180 Swirl Ring 30A 1
4. T-10878 220194 Shield 30A 1 29. T-10305 220553 Swirl Ring 50A 1
5. T-10882 220555 Shield 50A 1 30. T-10295 220179 Swirl Ring 80/130A (80/130A Bevel) 1
6. T-9838 220189 Shield 80A 1 31. T-10296 220353 Swirl Ring 200A 1
7. T-9839 220183 Shield 130A 1 32. T-10271 220436 Swirl Ring 260A (260A Bevel) 1
8. T-11276 220761-UR Shield 200A 1 33. T-11526 220631 OEM Swirl Ring 400A (400A Bevel) 1
9. T-11277 220764-UR Shield 260A 1 #34. T-9894# 220192-UR Electrode 30A 5
10. T-11523 220636 OEM Shield 400A 1 #35. T-10306# 220552-UR Electrode 50A 5
11. T-11403 220742-UR Shield 80/130A, Bevel 1 #36. T-9895# 220187-UR Electrode 80A 5
12. T-11402 220741-UR Shield 260A, Bevel 1 #37. T-9920# 220181-UR Electrode 130A 5
13. T-11272 220754 Inner Retaining Cap 30/50A 1 #38. T-11203# 220181-PRO Electrode 130A(=220665-PRO) 5
14. T-11273 220756 Inner Retaining Cap 80/130A 1 #39. T-9969# 220352-UR Electrode 200A 5
15. T-11274 220757-UR Inner Retaining Cap 200A 1 #40. T-11200# 220352-PRO Electrode 200A(=220666-PRO) 5
16. T-11275 220760-UR Inner Retaining Cap 260A 1 #41. T-9974# 220435-UR Electrode 260A 5
16a. N-19709 O-Ring 1 #42. T-11197# 220435-PRO Electrode 260A(=220668-PRO) 5
17. T-11524 220635 OEM Inner Retaining Cap 400A 1 43. T-11527 220629 OEM Electrode 400A (400A Bevel) 5
18. T-11401 220740-UR Inner Retaining Cap 130/260A, Bevel 1 #44. T-4927# 220187-AG Electrode, SilverEX-® 80A 5
19. T-9834## 220193-UR Nozzle 30A 1 #45. T-4917# 220181-AG Electrode, SilverEX-® 130A 5
T-10936 220193 Nozzle 30A 1 #46. T-4925# 220352-AG Electrode, SilverEX-® 200A 5
20. T-10313## 220554-UR Nozzle 50A 1 #47. T-4926# 220435-AG Electrode, SilverEX-® 260A 5
T-10940 220554 Nozzle 50A 1 #48. T-10309# 220649-UR Electrode 130A, Bevel 5
21. T-9835## 220188-UR Nozzle 80A 1 #49. T-10307# 220541-UR Electrode 260A, Bevel 5
T-10935 220188 Nozzle 80A 1 #50. T-9882# 220340-UR Water Tube With O-Ring 30–260A 1
22. T-9836## 220182-UR Nozzle 130A 1 50a. N-10055 1-009S O-Ring 1
T-10934 220182 Nozzle 130A 1 #51. T-10472# 220700-UR Water Tube With O-Ring 80/130A, Bevel 1
23. T-9967 220354-UR Nozzle 200A 1 #52. T-10323# 220571-UR Water Tube With O-Ring 400A (260/400A Bevel) 1
T-10937 220354 Nozzle 200A 1 53. T-11516 220706 OEM Quick – Disconnect Torch 1
24. T-9972 220439-UR Nozzle 260A 1 NS T-11116 220705 OEM Quick – Disconnect Receptacle 1
T-10938 220439 Nozzle 260A 1 NS T-11517 220789 OEM Mounting Tube 1
25. T-11525 220632 OEM Nozzle 400A (400A Bevel) 1 *54. TN-0069* 104119-UR Consumables Removal Tool 1
26. T-10310## 220646-UR Nozzle 130A, Bevel 1 55. T-0994 T-0994 O-ring lubricant – grease 25ml 1
NS T-10941 220646 Nozzle 130A, Bevel 1
* FULLY INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
# THERMACUT ELECTRODES HAS TO BE USED WITH THERMACUT DESIGN COOLING TUBE, OTHERWISE IT DOESN’T FIT TO THE TORCH, THERMACUT COOLING TUBE CAN BE USED FOR THERMACUT DESIGN ELECTRODES AND FOR ORIGINAL DESIGN TOO.
– Parts marked with “a” – MUST BE USED ONLY AS A SET OF SHIELD, SHIELD CAP AND INNER RETAINING CAP, THIS COMPLETE SET IS INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS
## NOZZLES -UR IN SOME CASES CAN REQUIRE DECREASE OF GAS FLOW, OFFERS SAVINGS OF THE COSTS FOR OXYGEN
NS NOT SHOWN IN THE PICTURE
OEM ORIGINAL PARTS



Replacement parts suitable for
HYPERTHERM®

HPR130®/HPR260®
Torches and Cable leads

HPR130 HPR260
Torches and Cable leads



Item Part No.. Ref. No. Description Std. Pkg. Item Part No.. Ref. No. Description Std. Pkg.
1., 5. T-11137 220162 Torch Q. D. Orig. design (incl.item 5) 1 KT-1126 128987 Cable Leads 10m (35ft) 1
1a. N-10096 1-028B O-ring 1 KT-1106 128785 Cable Leads 15m (50ft) 1
1b. N-10054 1-008S O-Ring 1 KT-1269
 K.HPR130.18M.K
 Cable Leads 18m (59ft) 1
2. T-11138 220163 Receptacle Q. D. Original design 1 KT-1150 128988 Cable Leads 20m (65ft) 1
2a. N-18108 N-18108 O-Ring 1 KT-1270 K.HPR130.21M.K Cable Leads 21m (69ft) 1
#3. T-10200# 220162-UR Torch Q. D. Thermacut design 1 !!! KT-1245 DEMO_HPR130 Torch + cable leads 0,8m, for exhibition only,inoperative! 1
#4. T-10201# 220163-UR Receptacle Q. D. Thermacut design 1 1,2,5,6,7 KT-1331 K.HPR130.7,5M Torch with Leads 7,5m (25ft) 1
5. T-11769 T-11769 Connector Tube HPR with O-Rings 1 3,4,6,7 KT-1066 K.HPR130.7,5M-UR Torch -UR with Leads 7,5m (25ft) 1
5a. N-10055 1-009S O-Ring 1 3,4,6,7 KT-1082 K.HPR130.15M-UR Torch -UR with Leads 15m (50ft) 1
6. T-10492 220232 Mounting Tube 1 3,4,6,7 KT-1076 K.HPR130.18M-UR Torch -UR with Leads 18m (59ft) 1
7. KT-1108 128986 Cable Leads 2m (6ft) 1 3,4,6,7 KT-1075 K.HPR130.21M-UR Torch -UR with Leads 21m (69ft) 1
K-10288 128935 Cable Leads 3m (10ft) 1 NS T-11207 128879-UR Set of spare parts, contains items 5 (4 pcs), 1a (2pcs), 1b (1pc), cool. tube, 220340-UR, silicon grease T-0994 1
KT-1117 128934 Cable Leads 4,5m (15ft) 1
KT-1052 128784 Cable Leads 7,5m (25ft) 1
# MUST BE USED ONLY AS A SET OF ITEMS 3 AND 4, THIS COMPLETE SET IS INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS
!!! DEMO is inoperative, for exhibition purposes only!
NS Not shown in the picture
Q.D. Quick Disconnect
All parts are with O-rings

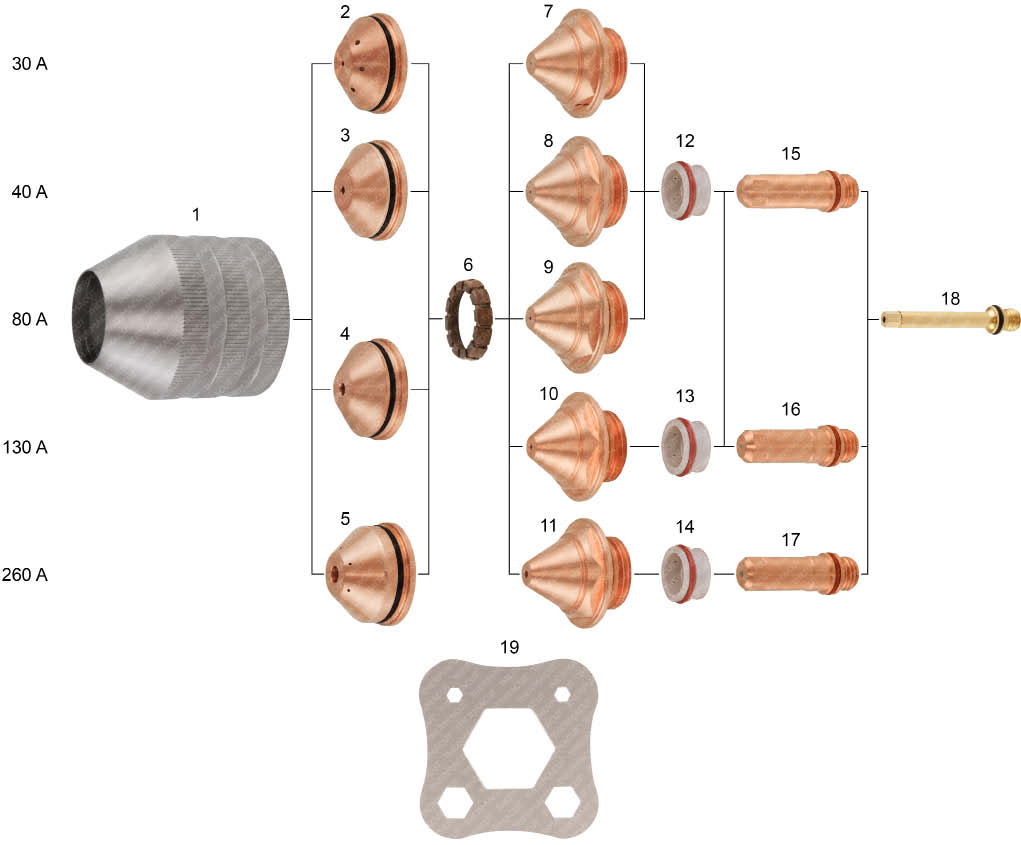

Replacement parts suitable for
KJELLBERG®

HP260A™ mild steel

HP260A mild steel



Item Part No.. Ref. No. Description Std. Pkg. Item Part No. Ref. No. Description Std. Pkg.
*1. T-11408 SC2-UR Shield Cap 30–260A 1 11. T-11333 N7 Nozzle 260A 1
2. T-11334 S1 Shield 30A 1 *12. T-11338 SW1-UR Swirl Ring 30–80A 1
3. T-11335 S2 Shield 40A 1 *13. T-11339 SW2-UR Swirl Ring 130A 1
4. T-11336 S3 Shield 80/130A 1 *14. T-11340 SW3-UR Swirl Ring 260A 1
5. T-11337 S4 Shield 260A 1 15. T-11341 E0 Electrode 30–80A 1
6. T-11328 G1 Gas Ring 30–260A 1 16. T-11342 E1 Electrode 130A 1
7. T-11329 N1 Nozzle 30A 1 17. T-11343 E3 Electrode 260A 1
8. T-11330 N2 Nozzle 40A 1 18. T-11327 B1 Cooling Tube 1
9. T-11331 N3 Nozzle 80A 1 *19. T-11351 100-07-106535-UR Consumable removal tool 1
10. T-11332 N5 Nozzle 130A 1
* FULLY INTERCHANGEABLE AND COMPATIBLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
Back to Top
