Woven Wire Mesh

Woven wire mesh is a woven fabric made of metallic material, flexible enough to be woven into a variety of shapes and sizes. At Industrial Mesh Supplies we offer a variety of products, including specialized high quality woven wire cloths of different styles, as well as custom requirements made to your specifications. Woven wire mesh can be supplied in rolls of various widths and lengths.

This is used extensively in various industries and different applications. All materials are woven from wire, and are available ex-Stock from 30mm to 25 Micron, in various types of weave. These meshes can also be punched in various diameters or shapes, and spot-welded together to create screen packs.

Woven-Wire-Mesh


Specifications Required to order

  • Mesh or Aperture size
  • Wire Mesh diameter
  • Type of material
  • Length & Width
  • Flat or with “hooks”


Plain-Weave

Plain Weave

Most commonly used weave. Each weft wire passes alternatively over and under each warm wire and vice versa. Warp and weft wire diameters are generally the same. Plain weave meshes are available with apertures from 10.7mm (2 mesh) to 0.05mm (325 mesh).


Twill-Weave

Twill Weave

Stronger than Plain Weave. Each weft wire alternatively crosses over two, then under two warp wires, producing a diagonal pattern. The wire diameter for both warp and weft is normally the same. Twill weave is usually used to accommodate heavier than standard wire diameter in association with a given mesh. Specifications finer than 300 are normally twill woven.


Holannder-View

Hollander Weave

A Palin Weave with the wrap wires of larger diameter than the weft. The weave is made up of a limited number of wrap wires interwoven with the maximum number of weft which can be knocked up. This cloth is strong and firm and is most frequently used for high pressure filtration.





Plain Weave Meshes

Mesh Count per inch Wire Dia. (mm) Aperture Size (mm) Open Area Weight for Stainless Steel (kg/sq m)
5 1.000 4.080 65% 2.48
6 0.900 3.333 62% 2.41
8 0.900 2.275 51% 3.22
8 0.710 2.465 60% 2.00
10 0.900 1.640 42% 4.02
10 0.710 1.830 52% 2.50
10 0.500 2.040 65% 1.24
12 0.560 1.557 54% 1.87
14 0.560 1.254 48% 2.18
16 0.560 1.028 42% 2.48
16 0.500 1.088 47% 1.99
16 0.450 1.138 51% 1.61
16 0.315 1.273 64% 0.79
20 0.500 0.770 37% 2.48
20 0.450 0.820 42% 2.01
20 0.355 0.915 52% 1.25
24 0.355 0.703 44% 1.50
28 0.315 0.592 43% 1.38
30 0.315 0.532 39% 1.48
30 0.280 0.567 45% 1.17
36 0.250 0.456 42% 1.12
40 0.224 0.411 42% 1.00
50 0.210 0.298 34% 1.10
50 0.190 0.318 39% 0.90
60 0.200 0.22 28% 1.23
60 0180 0.243 33% 0.97
70 0.150 0.231 34% 0.78
80 0.125 0.193 37% 0.62
100 0.112 0.142 31% 0.62
120 0.090 0.122 33% 0.48
120 0.080 0.132 39% 0.38
150 0.060 0.109 42% 0.27
165 0.050 0.104 46% 0.20
180 0.050 0.091 42% 0.22
200 0.050 0.077 37% 0.25
200 0.040 0.087 47% 0.16
250 0.040 0.062 37% 0.20
300 0.036 0.055 42% 0.13
325 0.036 0.042 29% 0.21
400 0.028 0.035 28% 0.18
500 0.025 0.026 26% 0.16


Hollander Weave Meshes

Nominal Mesh Count per Inch Wire Diameter Particle Retention (micron) Porosity Thickness (mm) Weight for Stainless Steel (kg/sq.m)
warp 12
weft 70
warp 0.600
weft 0.400
300 62% 0.225 3.64
warp 24
weft 110
warp 0.355
weft 0.250
120 60% 0.710 2.70
warp 50
weft 250
warp 0.140
weft 0.112
60 59% 0.315 1.00


Heavy Wire Mesh

This is a manual process of weaving to suit various applications, wire diameters range from a 0.9mm to a 20mm, and are mostly made up to customers specifications. These screens can also be supplied with “hooks” or metal edges.



Specifications required to order

  • Aperture
  • Wire Diameter
  • Type of Material
  • Length & Width

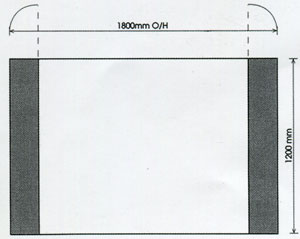

  • Flat or with hooks 1200mm x 1800 O/H
    eg. 25mm Ap x 8mmØ



Additional Tensioning Methods

Additional tensioning methods can be manufactured to your specific requirements.

Metal-Edged-Overhooked-Screens

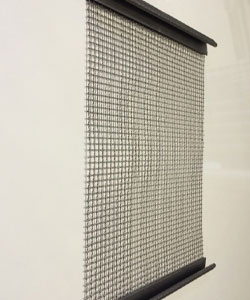

Metal Edged Overhooked Screens


Wire-Mesh-(1)

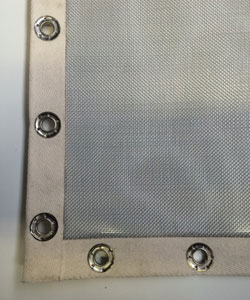

Canvas Edging with Eyelet



Punched Discs / Screen Packs

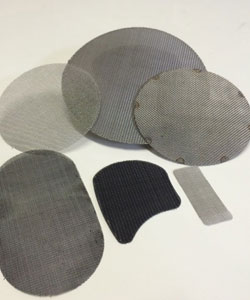

These meshes can also be punched to various diameters or shapes, and spotwelded together to make screen packs. Our standard Disc range is from 23mm to 305mm diameter, maximum wire thickness to be punched is 0.7mm.

Punched-Disc--Screen-Packs

Screen Packs



Specifications Required to order
  • Diameter
  • Mesh or micron size
  • If spotwelded, mesh sequence
  • Quantity





For more information on our products and services, please feel free to contact us at any time!
