Product Description
Wheel Block Travel Units

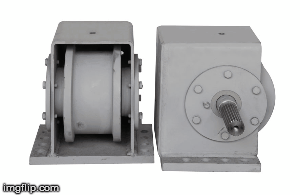

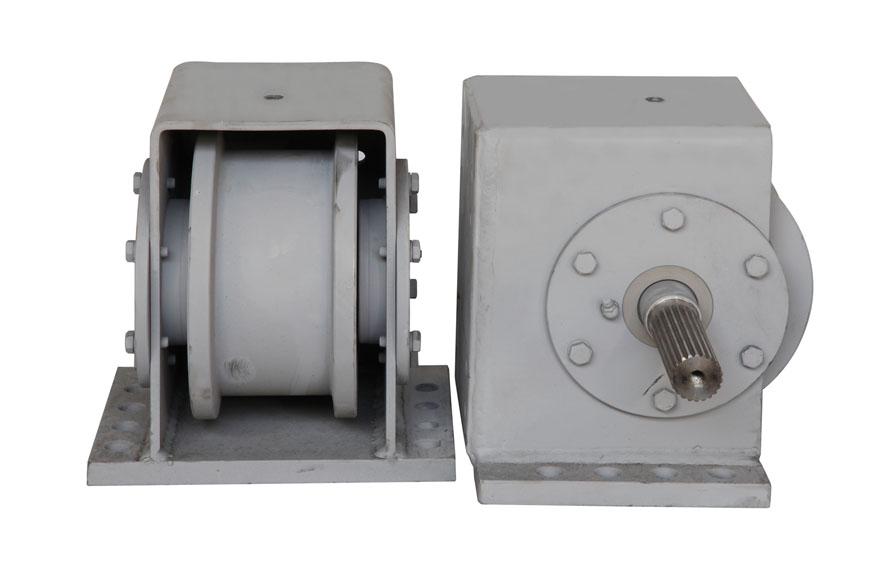

ProSTAR Wheel Blocks and End Carriages:
The ProSTAR Wheel Block units is an advanced rail mounted range designed for moving load at vaiable speeds and is the ideal choice for most handing operations. The system is precision engineered for outstanding performance and minimal maintenance proven under full dynamic load tests. Stringent testing and multi-stage quality control ensures maximum safety and reliability under the toughest service condition.
- Wheel load sizes range upto 180 kN.
- They are designed to allow for ease of maintenance insitu.
- The Alloy steel (34CrM04) Travel wheel reduces friction between the flanges and rails thus giving less wear than with other materials.
- Heavy duty steel housing protects the bearing assembly from damage and dirt.
- The torque arm, connecting parts and buffer are easily fitted.
- Rapid fitting and removal for all connection variants.

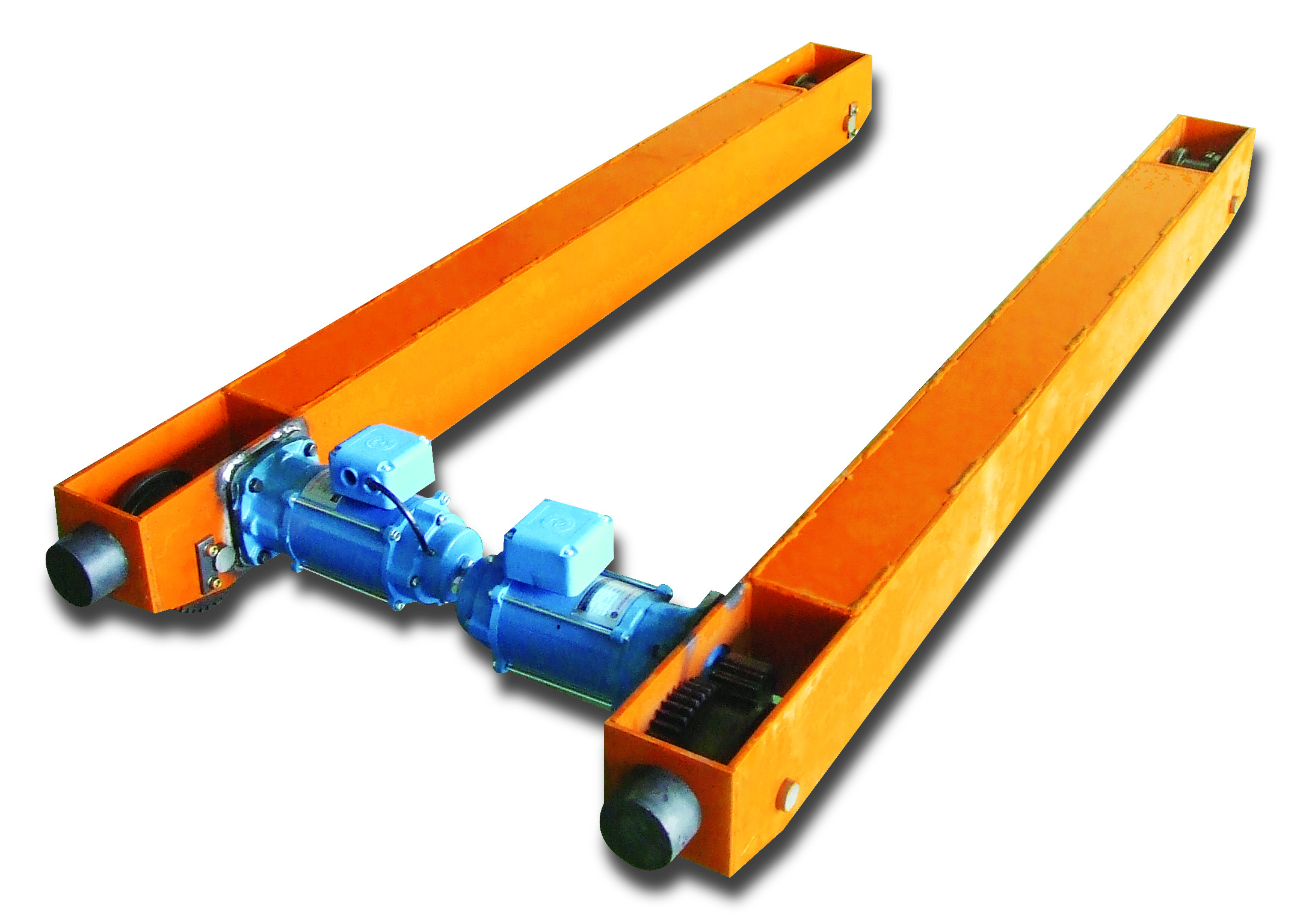

End Carriages
- Steel structure with built-in wheel, buffers and buffer plates.
- Alloy steel wheel of 34CrM04(JIS-SCM435, ASISI-4135).
- Drive shaft is alloy steel.
- long Life anti-friction bearings and grease-lubricated.
- Bearing house of spherical graphite cast iron.
