Product Description

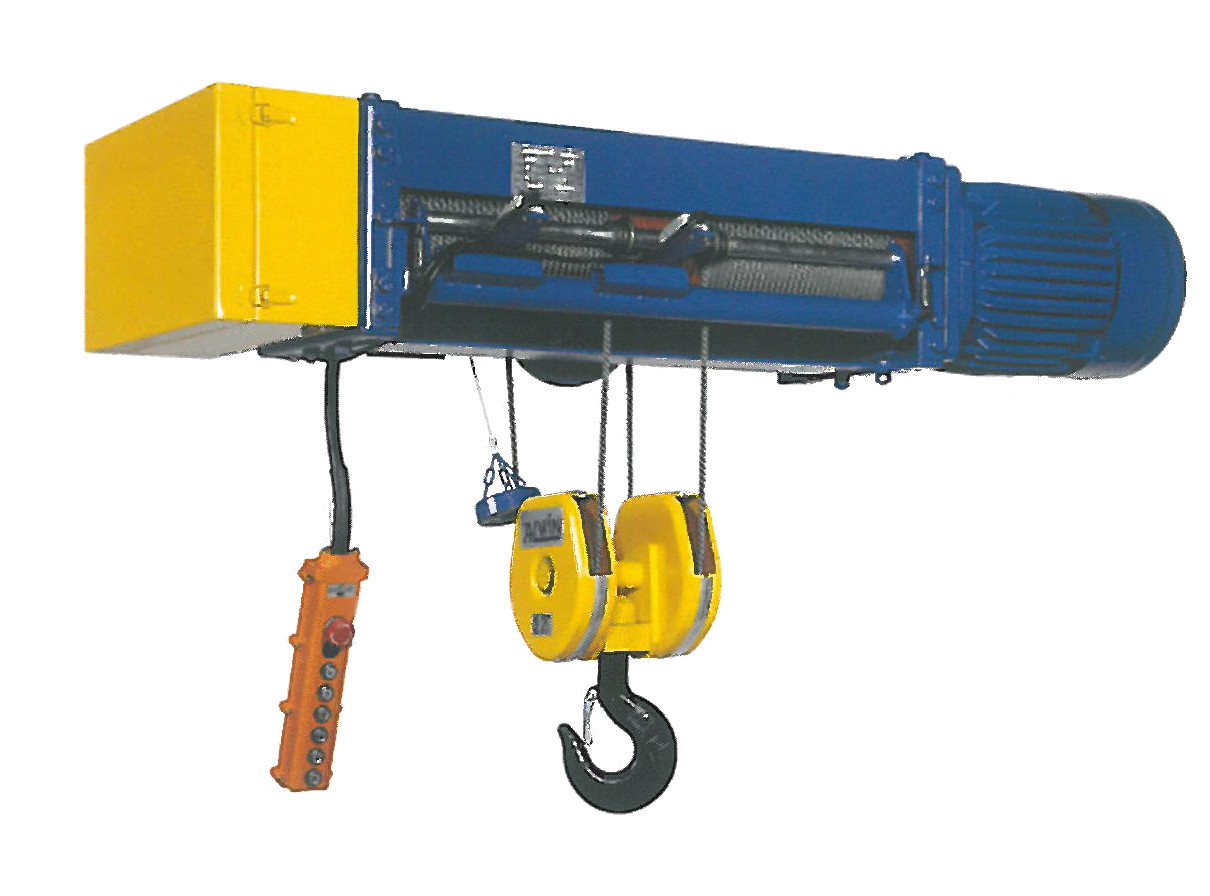

Fixed Mounted Type
Capacity range: 1t-60t
- Basic component element that is convenient for packing and delivery.
- The reserved holes for different component installation enables different types of device of device to be assembled such as mono-rail, double rail and low headroom type. etc.

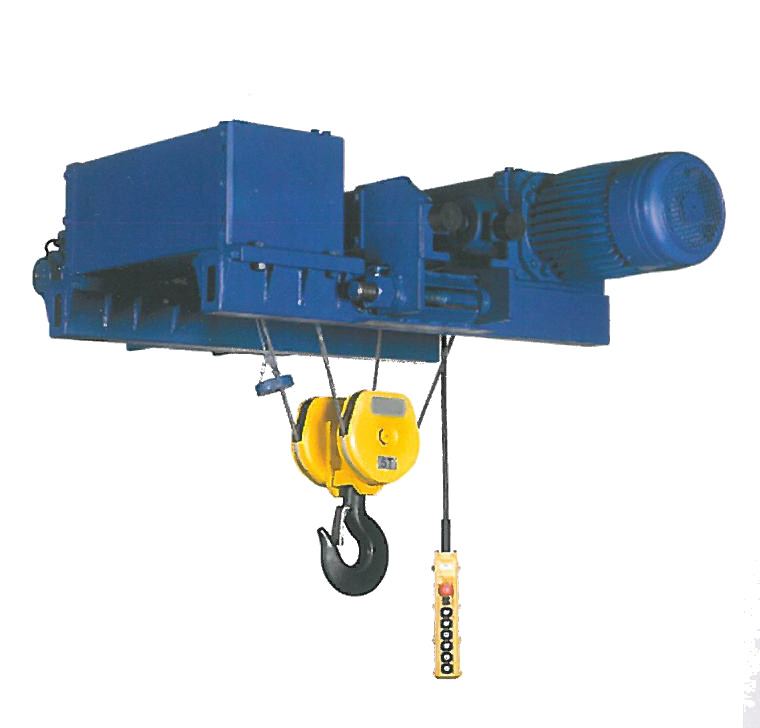

Low Headroom Type
Capacity range 1t-10t 0t
- This applies to the factory that has lower ceiling which requires the maximum hook path.
- The compact design of low headroom trolley hoists enables maximum height of lift and full utilization of the available space.
- Detail specification is available on request.

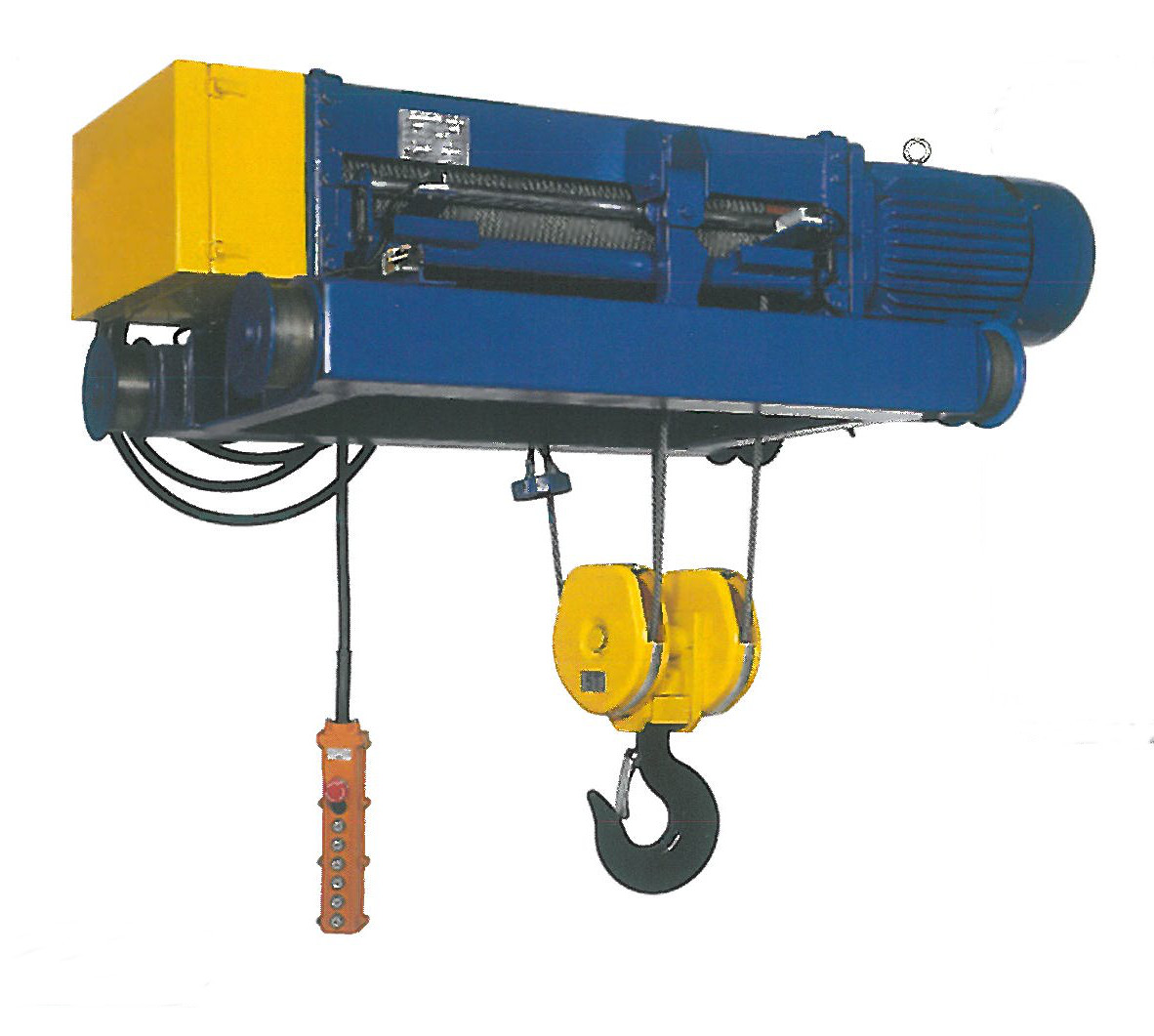

Mono-Rail Type
Capacity Range 1t-10t
- Suitable when there is limited space for the trolley or curved moving condition.
- Combination of fixed mounted-type and mono=rail element operate on the bottom of the single girder.
- The Wheel protection cover maybe installed on demand to extend life of gears; anti-drop steel plate and buffer rubber pad are installed for the purpose to achieve safety and reliability.
- Wheels can be adjusted to beam width therefore it is easy to adjust and implement.
- Two parallel drive wheels make traveling more stable and smooth.
- It can be applied to a curved beam with bending radius of 1.5 to 3 meters therefore if curved working space existed it can also be used.
Twin Type
Combination of two hoists
- Heavy and light duty hoist mounted on the same double-rail trolley.
- Main hoist handles heavy duty; it has slow lift speed and consumes high electricity. sub-hoist handles light duty it has relatively high lift speed, better power saving and easier to operate with.
- Benefits of two different hoists combining into one, saves the need to have another set rails and it ensures no interference between the two hoists.
- There is a wide range of combination to choose from, for detail information please contact us.
Double-Rail Type
Capacity Range; 1t-32t
- Suitable for heavy duty load.
- combination of fixed mounted type and double-rail trolley operated on double girder.
- the wheel that is made of mono-block medium carbon steel and the surface is processed with hardness treatment.
- Wheel protection cover and buffer rubber pad can be installed on demand to reduce impact.
- Automated adjustment by eccentric shaft capable of running on uneven rails and every sustain the load.
- Hollow shaft gearbox can be installed on demand to increase the life span of gears.
Double-Rail Type of True Vertical
Capacity Range; 20t-60t
- Two ropes come from he drum makes the center of loading invariable while loading.
- The design of double reeling is safer for heavy loading and can ensure the center of gravity is kept in a vertical straight at all times.
