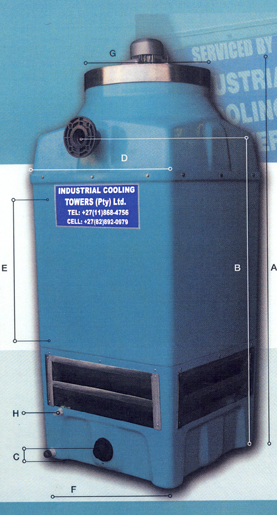

ict 650 small 1500 cooling tower
|
| a |
Height |
1500mm |
| b |
Inlet height / size |
1060mm / 63 mm stub & flange |
| c |
Outlet height / size |
70mm / 63mm tank adapter |
| d |
Width |
650mm x 650mm |
| e |
Fill depth |
300mm |
| f |
Foot print |
550mm |
| g |
Fan diameter |
447mm |
| h |
Valve |
15mm |
| |
Motor |
0,37 KW / 1450 rpm |
|
ict 650 cooling tower
|
| a |
Height |
1800mm |
| b |
Inlet height / size |
1360mm / 63mm stub & flange |
| c |
Outlet height / size |
70mm / 50mm tank adapter |
| d |
Width |
650mm x 650mm |
| e |
Fill depth |
600mm |
| f |
Foot print |
550mm |
| g |
Fan diameter |
447mm |
| h |
Valve |
15mm |
| |
Motor |
0,37KW / 1450 rpm |
|
ict 850 cooling tower
|
| a |
Height |
2000mm |
| b |
Inlet height / size |
1510 / 63 mm stub and flange |
| c |
Outlet height / size |
70mm / 50mm stank adapter |
| d |
Width |
850mm x 850mm |
| e |
Fill depth |
600mm |
| f |
Foot print |
750mm |
| g |
Fan diameter |
590mm |
| h |
Valve |
15mm |
| |
Motor |
0,75KW / 1450 rpm |
|
ict 1250 cooling tower
|
| a |
Height |
2500mm |
| b |
Inlet height / size |
1900mm / 110mm stub & flange |
| c |
Outlet height / size |
70mm / 50 mm tank adaptor |
| d |
Width |
1250mm x 1250mm |
| e |
Fill depth |
600mm |
| f |
Foot print |
1150mm |
| g |
Fan diameter |
830mm |
| h |
Valve |
15mm |
| |
Motor |
1,5KW / 960 rpm |
|
ict 1550 cooling tower
|
| a |
Height |
2700mm |
| b |
Inlet height / size |
2050mm / 110mm stub & flange |
| c |
Outlet height / size |
100mm / 100mm flange |
| d |
Width |
1550mm x 1550mm |
| e |
Fill depth |
600mm |
| f |
Foot print |
1450mm |
| g |
Fan diameter |
960mm |
| h |
Valve |
25mm make – up ball float valve |
| |
Motor |
2,2KW / 960 rpm |
|
ict 1850 cooling tower
|
| a |
Height |
2900mm |
| b |
Inlet height / size |
2180mm / 110mm stub & flange |
| c |
Outlet height / size |
100mm / 100mm flange |
| d |
Width |
1850mm x 1850mm |
| e |
Fill depth |
900mm |
| f |
Foot print |
1750mm |
| g |
Fan diameter |
1060mm |
| h |
Valve |
25mm make – up ball float valve |
| |
Motor |
3 KW / 960 rpm |
| ICT 2150 Cooling Tower |
| a |
Height |
3050mm |
| b |
inlet height/size |
2120mm |
| c |
outlet height/size |
100mm/100mm Flange |
| d |
width |
1830mm x 2400L.mm |
| e |
fill depth |
900mm |
| f |
foot print |
1700mm x 2310mm |
| g |
fan diameter |
1515mm |
| h |
valve |
25mm make – up ball float valve |
| |
motor |
5.5KW / 960 – 960 rpm 400V |
|
ICT 2750 Cooling Tower
|
| a |
Height |
3830mm |
| b |
Inlet height / size |
3130mm |
| c |
Outlet height / size |
197mm |
| d |
Width |
2200mm x 3400L.mm |
| e |
Fill depth |
1500mm |
| f |
Foot print |
2200mm x 3400mm |
| g |
Fan diameter |
1840mm |
| h |
Valve |
25mm make – up ball float valve |
| |
Motor |
11 KW / 960 – 720 rpm |
