Airflow LCA301
Download Data sheet

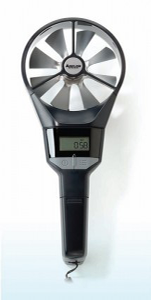

Model LCA301
Model LCA301 is a light weight, robust, and simple to use
Rotating Vane Anemometer that provides accurate and reliable
readings every time. Ideal for HVAC commissioning at grilles,
ducts, and diffusers; the LCA301 displays readings in metric or
imperial mode.
Features and Benefits
• Reversible 100 mm head allows readings at supply and extract grilles
• Calculates volumetric flow rate
• Compatible with Aircone Flow Hoods
• No density correction factors required
• Automatic averaging of air velocity
- Related Products
-
Kestrel 4000 Pocket
In 2000, we introduced the Kestrel 4000 Pocket Weather Tracker, and today it is still the most comprehensive hand-held weather device on the market.
Kestrel 4000 Measures
- Barometric pressure
- Pressure trend
- Altitude
- Relative humidity
- Heat stress index
- Dewpoint
- Wet bulb temperature
- Density altitude
- Wind chill
- Air, water, and snow temperature
- Current wind speed
- Average wind speed
- Maximum wind gust
Kestrel 4000 Features
- Waterproof and floats
- Easy to read, backlit display
- Time and date
- Exterior temperature, humidity, and pressure sensors for fast and accurate readings
- Humidity sensor can be recalibrated in the field with our Relative Humidity Calibration Kit.
- Minimum, maximum, and average values
- Automatically store measurements, even when the unit is turned off
- Manually store measurements with the press of a button
- Customizable data storage – 2000 data points
- Graph and recall trends
- Customize screens to display user-selected measurements
- Data charting
- Data upload (with optional interface)
- Five languages (English, French, Spanish, German, and Italian)
- User-replaceable impeller
- Flip-top impeller cover allows use of other functions while protecting the impeller (hard cases available.)
- US Patent Nos. 5,783,753 and 5,939,645 and 6,257,074
- All instruments and accessories are completely assembled in the USA
- 2-year warranty
-
SM-18 Skymate Wind Meter
Convenient pocket-knife design, accuracy, features, and price make this the best value in handheld wind meters! It is water resistant, it floats, and it has a high visibility case.
Average wind speed over 5, 10, or 13 seconds
Current temp & wind chill
Choose any measurement unit
Reads in tenths
Replaceable 400 hour lithium battery
Data lock feature
Replaceable plastic impeller won’t corrode
Easy to read LCD
Threaded for tripod mounting
Unique pocket-knife design to protect unit when not in use
Water resistant to 3 ft
High visibility case
FloatsSpecifications
ACCURACY: +/- 3% when aligned with wind’s axis
WIND RANGE: .5-89 MPH
TEMPERATURE RANGE: 5 – 122 F (-15 to 50 C)
OPTIONAL UNITS: Knots, MPH, KPH, M/Sec, Ft/Min, Beaufort Scale – F or C
OPERATING MODES: Current Windspeed – Average over 2 seconds
Average Wind – 5,10, or 13 sec – Max Wind – 2 sec gust since power on
AUTO SHUTDOWN: After 20 minutes if not done manually
POWER: CR2032 Lithium battery (included)
MEASURES: 4.8″ x 1.8″ x .7″
WEIGHS: 2.3 ounces with case -
Models TA430 and TA440
Download Data sheet
Models TA430 and TA440
The Models TA430 and TA440 are like having multiple meters
for the price of one, yet they are simple to operate. Purchase
instruments with a straight or articulated probe–all in one
compact package.Features and Benefits
• Accurate air velocity measurement
• Large, easy to read display
• Calibration certificate includedModels TA430 and TA440
• Simultaneously measures temperature and velocity
• Displays up to three measurements simultaneously
• Calculates volumetric flow, and actual/standard velocity
• Articulated probe versions available
• Data logging and LogDat2TM downloading software included
• Measures humidity (TA440)Applications
• HVAC system performance
• Commissioning
• Plant maintenance
• Critical environment certification
• Duct traverses
